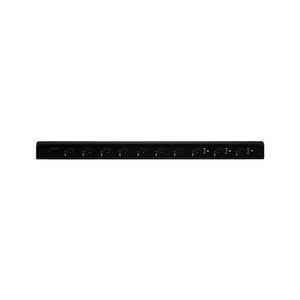

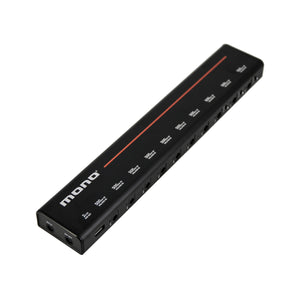

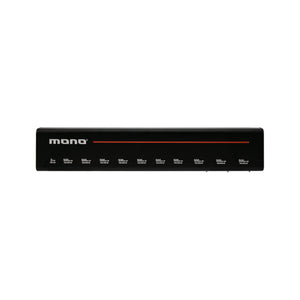

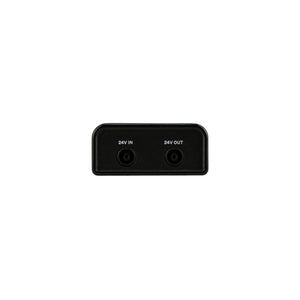

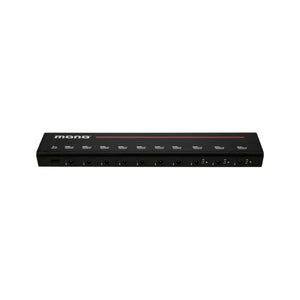

Power Supply, Large (AU)

The MONO Power Supply, Large is an ultra-slim, expandable pedalboard power supply. It features 10 high current, low-noise isolated outputs, including 3 with variable voltage (9/12/18V). Each Power Supply is built with a lightweight and durable aluminum casing and at just 1” depth, will fit underneath the shallowest of pedalboards. When you’re ready to step up to a bigger board, you can simply link the MONO Power Supply, Large, to a Small or Medium and power up to 16 pedals.

FEATURES

THOUGHTFULLY DESIGNED

MONO Power Supply features individual orange status LEDs at each output, soft-touch cable barrels, and sleek, curved edges, making it as aesthetically pleasing as it is functional. Pair it with an IEC plug and it is universally compatible with any power source worldwide.

RELIABLE AND EFFICIENT

MONO Power Supply provides reliable power to your pedals with features like short circuit, overload, and thermal protection. Its input filter and multi-stage output filters ensure an extremely low noise floor, all while maintaining energy-efficient operation.

INCLUDES MOUNTING KIT

Each MONO Power Supply comes with both a mounting kit and a hook and loop solution for securing the unit to a pedalboard.

WHAT'S INCLUDED

• MONO Power Supply, Large
• 2.1mm x 5.5mm Power Cable Short (x5)
• 2.1mm x 5.5mm Power Cable Long (x5)
• IEC Cable
• EIAJ-05 Power Adapter Cable
• 24V Power Adapter
• MONO Power Supply Mounting Brackets (x2)
• M3.5*13 Pan Head, Self-Tapping, Dovetail Screws (x6)
• Hook-and-Loop Tape

TECHNICAL SPECIFICATIONS

Input: 24V DC @ 3A (5.5mm x 2.1mm plug)

Outputs: 9V DC 500mA, center negative (x7) | 9/12/18V DC 500mA, center negative (x3) | 5V 2A, USB-A (x1) | 24V DC 2A (x1)

DIMENSIONS

Size: 12.32" x 2.20" x 0.98" (313 mm x 56 mm x 25 mm)
Weight: 10.72 oz (304 g)
